Gate antenna
Features
- Applicable for the broad entrance.
- Transmission range can be flexibly changed from maximum 4 meter to minimum 1 meter at one side of the antenna.
- Can be interlocked along with our camera surveillance system.
- The digital image near the antenna can be recorded in the hard disc drive when the antenna detected the abnormality.
- Audio/visual alarm devices can be arranged with buzzer, warning light, etc.
- Alarm message can be transmitted to security center by wireless device.
Specifications
| Dimensions(W×D×H) | 345 × 105 × 1430mm |
|---|---|
| Transmission range | Out-going & in-coming type
In-coming only type |

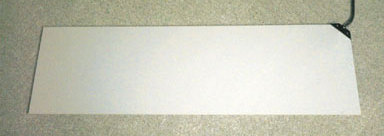

Mat antenna
Features
- Radio wave is transmitted from the floor. No disturbance to shop outlook.
- Installed without big construction work.
- Suitable for the shops where the outlook should be taken cared.
- Easy and handy installation for immediate use.
Specifications
| Dimensions(W×D×H) | 1100 × 300 × 7mm |
|---|---|
| Transmission range | Height : 1.8 - 2.2 meter Width : 2.2 - 3.3 meter * Range can be adjustable. Detection range fluctuates according to the environment. |
Embed antenna / Embed alarm G
Features
- Taylor-made before the shop's construction work.
- Flexibly installed regardless of entrance location/size.
- With upgraded type, the alarm sound can be generated from the antenna's control box on top of tag's self alarm sound.
- The system can be enhanced by interlocking with camera and other devices.
- As it is invisible, most suitable for the high end shops where the presence of antenna should be avoided.

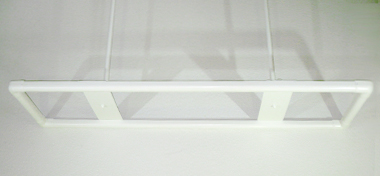

Overhead antenna
Features
- Hanged from the ceiling.
- Suitable for the shops who dislikes installing the antenna on the floor.
- Due to its wide detection range, suitable for the large scale shops.
- This antenna does not block the traffic line of people, so flexibly installed at any place to make the shop open-spaced.
Specifications
| Dimensions(W×D×H) | 1800 × 600 × 40mm |
|---|---|
| Transmission range | Height : 3.5 - 4.5 meter Width : 5.0 meter * Range can be adjustable. Detection range fluctuates according to the environment. |
